Benefits of using server consolidation for energy efficiency

By consolidating servers you can:

• Increase utilization of existing hardware from 10 to 15 percent, up to 80 percent


• Reduce servers at a 10-to-1 ratio


• Reduce hardware and operating costs by as much as 50 percent

About the book: This chapter excerpt on Datacenter Design and Redesign (download PDF) is taken from the book Green IT: Reduce Your Information System's Environmental Impact While Adding to the Bottom Line. This book teaches solutions providers about the best practices for designing a data center and how design features such as floor layout, server configuration and floor vent tiles can help improve energy efficiency.

Traditionally, servers were approached with a "one workload, one box" philosophy. That is, if you needed an e-mail server, you bought a new server. If you needed a file server, you bought a new server. However, each server is not used often enough to truly justify its location on a single machine. As mentioned earlier, most servers only operate at about 10 to 15 percent of their total load capacity.

The result of having a server for each network application is server sprawl. In this section, we'll talk about the merits of consolidating your servers into fewer machines.

Utilization

Server sprawl can be eliminated by consolidating and virtualizing your physical machines into virtual machines. Applications such as VMware run independently from the underlying hardware and are supported on a range of physical servers.

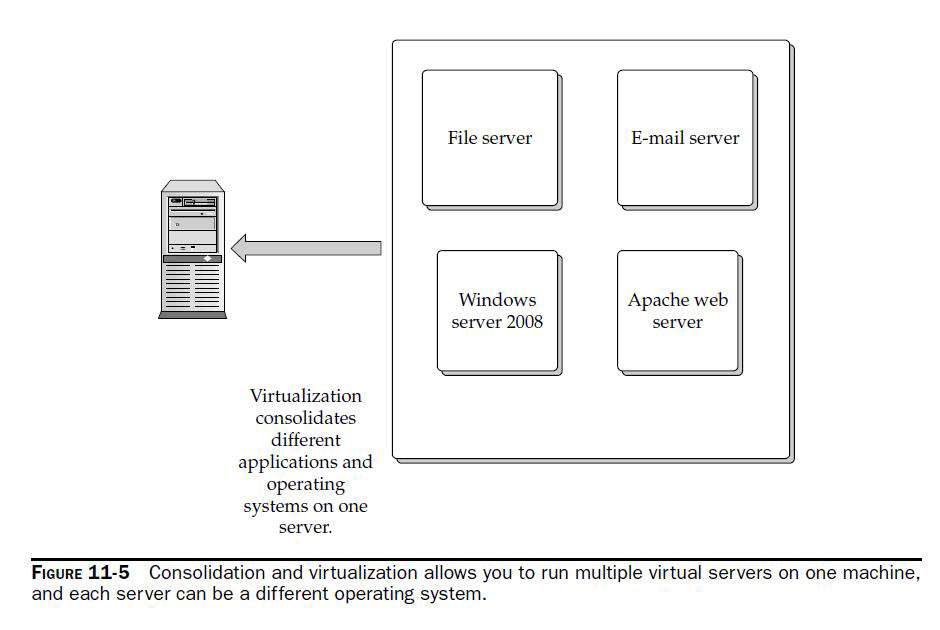

And if you have different operating systems for your different applications, that's not a problem. A virtual machine represents a complete system—processors, memory, networking, storage, and BIOS. This allows you to run Windows, Linux, Solaris, and NetWare operating systems and applications on the same server. This is illustrated in Figure 11-5.

Normally, a server running a lone application experiences total utilization of 15 percent, tops. That means all that processing power you paid for is being wasted—and all the power you're paying the electric company for to run that machine is also being wasted.

By running multiple virtual servers on one physical server, you're increasing your utilization of that machine from 15 percent up to 80 percent.

Hardware Reduction

Consolidation doesn't just mean that one server can do double-duty. It's more like a 10-to-1 ratio. For example, the VMware ESX Server can support more than 100 virtual machines.

About the authors: Toby J. Velte, Ph.D., is an internationally bestselling author of business technology articles and books. He is cofounder of Velte Publishing Inc. and coauthor of Microsoft Windows Vista Administration. Anthony T. Velte, CISSP, CISA, is a bestselling coauthor of a variety of technology books, including Cisco: A Beginners Guide. Robert Elsenpeter is an award-winning journalist and author of a dozen technology books, including Optical Networking: A Beginner's Guide.

You can also use the same strategy on storage and network consolidation, thus reducing more equipment from your server room.

Reducing Operating Costs

According to a study performed by Lawrence Berkeley National Laboratory, the servers in a datacenter account for about 55 percent of the electricity costs. The remaining power is spent to support that equipment—Lawrence Berkeley National Laboratory, 2007. So when you consolidate your equipment, you also need fewer pieces of equipment to play support roles, so there's more cost savings there.

Consolidating can save you about US$560 per year per server. So let's use the simple math example of consolidating 10 servers into 1. Consolidating 10 servers down to 1 results in a US$5040 savings per year. And that's at a smallish company. If you have thousands of servers, you'll recognize some big savings.

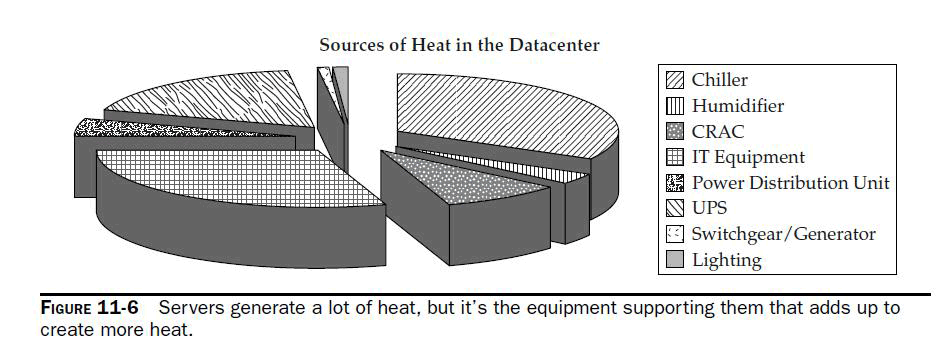

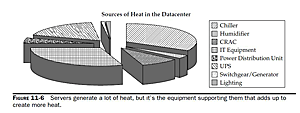

Consolidation also cuts down on the amount of heat generated in your datacenter. But, like power consumption, it isn't just the servers that generate the heat, it's also the equipment supporting the servers that add to the heat generation. Figure 11-6 shows this.

Repurposing Servers

As part of your green datacenter design process, you should also look at the equipment you have and evaluate its worth. You might have a systems life cycle that dictates

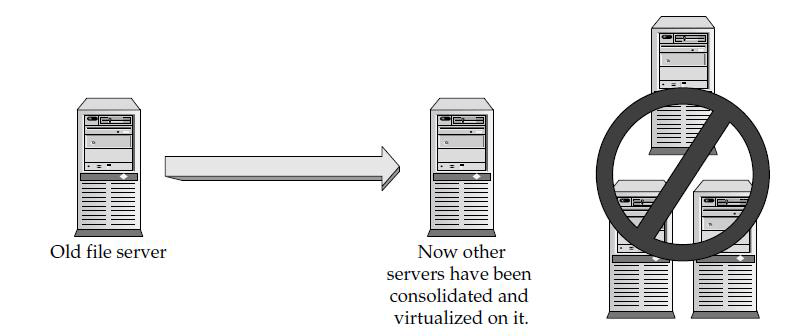

For instance, if you have a server that has sufficient processing power and memory, why not keep it, but consolidate and virtualize the duties of other servers? If it is equipment you already own, by repurposing the server you don't need to buy a new one (thus saving you the expense of buying a new one and recycling the old one), plus you maximize the server's utilization.
