Scripting VMware Power Tools

Scripting Creation of Virtual Machines in Perl Scripts

VMware ESX Server supports additional scripting languages such as VmPerl.
VmPerl is VMware's version of the Perl programming language.VMware has
designed VmPerl to provide task automation and simple, single-purpose user
interfaces.VmPerl's main purpose is to interact with the virtual machines on
ESX Server.You can query status, start and stop virtual machines, as well as
manage snapshots.With some creative scripting we can have VmPerl create
our virtual machines for us as well. Scripting in VmPerl is not for beginners.
If you've never scripted in Perl before then review the sample VmPerl Script
and note the code comments in the script.VmPerl is a customized version of
Perl, so research the Perl language in general for more information on how to
program in Perl.The example script in Code Listing 4.7 was written so it
could be easily modified to suit your particular needs. It is a basic VmPerl
script with a menu-driven interface. Leveraging the knowledge you've gained
in the previous sections will help you understand the script interactions.
Novices in scripting should find the next script example very easy to understand
and follow. Experienced scripters may find the script rudimentary and
know of alternate ways to accomplish similar tasks. Whatever your scripting
experience, I hope you find the example scripts in this chapter thought provoking
and insightful.

VmPerl allows for flexibility on how you go about creating your virtual
machines. In our example script (see Code Listing 4.7), I used VmPerl's user
input and file manipulation commands to accomplish the three primary tasks
when creating virtual machines.

Creating the virtual machine configuration file (VMX)
Creating the virtual machine disk file (VMDK)
Registering the virtual machine with ESX Server


Code Listing 4.7 Scripted VM Creation with Perl

#!/usr/bin/perl -w
use VMware::VmPerl;
use VMware::VmPerl::Server;
use VMware::VmPerl::ConnectParams;
#use strict;
##### VM Menu Driven Creation Script ############
#Script Version 1.8
#Author David E. Hart
#Date 10-05-06
#
#----------+
#Purpose |
#-----------
# This script presents a menu for automatically building
# virtual machine config files (VMX) and Dis files (VMDK)
# This script demonstrates how to automate the setup
# of virtual environments
#---------------------------+
#Custom Variables Section |
#---------------------------+
#vmname = virtual machine name, will be used for disk as well
#vmmem = amount of memory assigned to VM
#vmos = OS that VM is configured for
#vmdisk = size of VM disk
###################################################

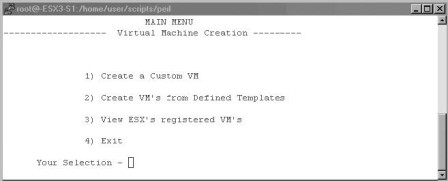

main: # main menu
system("clear");
print " MAIN MENU n";
print "------------------- Virtual Machine Creation --------- n";
print "n";
print "n";
print "n";
print " 1) Create a Custom VM n";
print "n";
print " 2) Create VM's from Defined Templates n";
print "n";
www.syngress.com
Building a VM • Chapter 4 159
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 159
print " 3) View ESX's registered VM's n";
print "n";
print " 4) Exit n";
print "n";
print " Your Selection - ";
$menuopt = <>; chomp $menuopt; # Get user selection

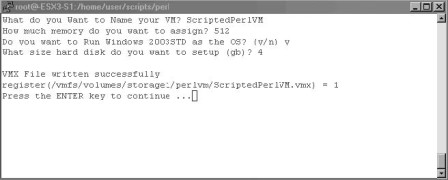

if ($menuopt == 1) { # Get input for custom VM
system("clear");
print "What do you want to name your VM? ";
$vmname = <>; chomp $vmname; # use chomp to remove carriage return
print "How much memory do you want to assign? ";
$vmmem = <>;chomp $vmmem;
print "Do you want to run Windows 2003STD as the OS? (y/n) ";
$vmos = <>;chomp $vmos;
if ($vmos eq "y") {
$vmos = "winNetStandard";
} # Only 2 options for this example
else {
print "Do you want to run Windows 2003Ent as the OS? (y/n) ";
$vmos2 = <>;chomp $vmos2;
if ($vmos2 eq "y") {
$vmos = "winnetenterprise";
}
}
print "What size hard disk do you want to set up (gb)? ";
$vmdisk = <>;chomp $vmdisk;
print "n";
$x = writevmx(); # Subrouting for creating VMX file
if ($x == 1) {
print "VMX File written successfully n";
}
$w = setper(); # Subroutine to set permissions so anyone can
use VM
if ($w == 1) {
www.syngress.com
160 Chapter 4 • Building a VM
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 160
print "Permissions set successfully n";
}
$y = createdisk(); # subrouting to create VMDK disk file
if ($y == 1) {
print "Virtual disk created successfully n";
}
$z = registervm(); # subroutine to register VM with ESX
if ($z == 1) {
print "VM registered successfully n";
}
print "Press the ENTER key to continue ...";
$pause = ;
goto main
}
if ($menuopt == 2) { # option to displays the templates
menu1:
system("clear");
print " Defined Templates n";
print " ----------------- n";
print "n";
print "n";
print " 1) Windows 2003std VM with 256m, 4gb drive n";
print "n";
print " 2) Windows 2003ent VM with 1gig, 8gb drive n";
print "n";
print "n";
print "n";
print "n";
print " Your Selection - ";
$menu1opt = <>; chomp $menu1opt;
if ($menu1opt == 1) {
$vmname = "2003std25m4gb";
$vmmem = "256"; # change and add on similar sections
www.syngress.com
Building a VM • Chapter 4 161
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 161
$vmdisk = "4"; # to create templates for your environment
$vmos = "winnetstandard";
$x = writevmx();
if ($x == 1) {
print "VMX File written successfully na";
}
$w = setper();
if ($w == 1) {
print "Permisions set successfully na";
}
$y = createdisk(); # Call subroutines to create VMs
if ($y == 1) {
print "Virtual disk created successfully na";
}
$z = registervm();
if ($z == 1) {
print "VM registered successfully na";
}
print "Press the ENTER key to continue ...";
$pause = ;
goto main
}
if ($menu1opt == 2) {
$vmname = "2003Ent1gb8gb";
$vmmem = "1024";
$vmdisk = "8";
$vmos = "winnetenterprise";
$x = writevmx();
if ($x == 1) {
print "VMX file written successfully na";
}
$w = setper();
if ($w == 1) {
print "Permissions set successfully na";
www.syngress.com
162 Chapter 4 • Building a VM
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 162
}
$y = createdisk();
if ($y == 1) {
print "Virtual disk created successfully na";
}
$z = registervm();
if ($z == 1) {
print "VM registered successfully na";
}
print "Press the ENTER key to continue ...";
$pause = ;
goto main
}
else {
goto menu1;
}
}
if ($menuopt == 3) { # Use a function of VmPerl to display registered VMs
system("clear");
my ($server_name, $user, $passwd) = @ARGV; # Assume running in ESX
server
my $port = 902; # with appropriate
rights
VMware::VmPerl::ConnectParams::new($server_name,$port,$user,$passwd);
VMware::VmPerl::ConnectParams::new(undef,$port,$user,$passwd);
my $connect_params = VMware::VmPerl::ConnectParams::new();
# Establish a persistent connection with server
my $server = VMware::VmPerl::Server::new();
if (!$server->connect($connect_params)) {
my ($error_number, $error_string) = $server->get_last_error();
www.syngress.com
Building a VM • Chapter 4 163
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 163
die "Could not connect to server: Error $error_number:
$error_stringn";
}
print "nThe following virtual machines are registered:n";
# Obtain a list containing every config file path registered with the
server.
my @list = $server->registered_vm_names();
if (!defined($list[0])) {
my ($error_number, $error_string) = $server->get_last_error();
die "Could not get list of VMs from server: Error $error_number:
".
"$error_stringn";
}
print "$_n" foreach (@list);
# Destroys the server object, thus disconnecting from the server.
undef $server;
print "Press the ENTER key to continue ...";
$pause = ;
goto main
}
if ($menuopt == 4) {
goto end1
}
sub writevmx { # Subroutine to Create VM's VMX config file
# $file = '/vmfs/volumes/storage1/perlvm/perlvm.vmx'; #
Name the file
$file = "/vmfs/volumes/storage1/perlvm/" . $vmname . ".vmx";
open(INFO, ">$file"); # Open for output
www.syngress.com
164 Chapter 4 • Building a VM
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 164
print INFO 'config.version = "6" ' . "n";
print INFO 'virtualHW.version = "3" ' . "n";
print INFO 'memsize = "' . $vmmem . '" ' . "n";
print INFO 'floppy0.present = "TRUE" ' . "n";
print INFO 'displayName = "' . $vmname . '" ' . "n";
print INFO 'guestOS = "' . $vmos . '" ' . "n";
print INFO 'ide0:0.present = "TRUE" ' . "n";
print INFO 'ide0:0.deviceType = "cdrom-raw" ' . "n";
print INFO 'ide:0.startConnected = "false" ' . "n";
print INFO 'floppy0.startConnected = "FALSE" ' . "n";
print INFO 'floppy0.fileName = "/dev/fd0" ' . "n";
print INFO 'Ethernet0.present = "TRUE" ' . "n";
print INFO 'Ethernet0.connectionType = "monitor_dev" ' . "n";
print INFO 'Ethernet0.networkName = "VM Network" ' . "n";
print INFO 'Ethernet0.addressType = "vpx" ' . "n";
print INFO 'scsi0.present = "true" ' . "n";
print INFO 'scsi0.sharedBus = "none" ' . "n";
print INFO 'scsi0.virtualDev = "lsilogic" ' . "n";
print INFO 'scsi0:0.present = "true" ' . "n";
print INFO 'scsi0:0.fileName = "' . $vmname . '.vmdk" ' . "n";
print INFO 'scsi0:0.deviceType = "scsi-hardDisk" ' . "n";
close(INFO); # Close the file
}
sub createdisk { # Subroutine to create virtual disk
$cr = "vmkfstools -c " . $vmdisk . "g " . "
/vmfs/volumes/storage1/perlvm/". $vmname . ".vmdk -a lsilogic";
system("$cr");
};
sub registervm { # Subroutine to register VM with ESX Server
www.syngress.com
Building a VM • Chapter 4 165
370_VMware_Tools_04_dummy.qxd 10/12/06 7:28 PM Page 165
$rg = "vmware-cmd -s register /vmfs/volumes/storage1/perlvm/" .
$vmname . ".vmx";
system("$rg");
}
sub setper{ # Subroutine to set permission on VMX file
$pm = "chmod 755 /vmfs/volumes/storage1/perlvm/" . $vmname .
".vmx";
system("$pm");
}
end1:


Modifying Scripted VM Creation with Perl
The script shown in Code Listing 4.7, and later in Code Listing 4.11, provides
static mapping for VM creation.This is sufficient for an example, but
not very practical for real-world scenarios.We will modify the script to support
end-user input of VM destination pathing.We will accomplish this by
adding a new variable $vmpath to our script and adding the appropriate following
sections.

Add new variable vmpath to scripts variable notes section


#---------------------------+
#Custom Variables Section |
#---------------------------+
#vmname = virtual machine name, used for disk as well
#vmmem = amount of memory assigned to VM
#vmos = OS that VM is configured for
#vmdisk = size of VM disk
#vmpath = path to VM directory, (must already exist)
###################################################



Add new prompt in Custom VM Creation section, "option 1."


print "What size hard disk do you want to set up (gb)? ";
$vmdisk = <>;chomp $vmdisk;
print "n";
print "Path to Save VM (ie. /vmfs/volumes/storage1/vm/";
$vmpath = <>;chomp $vmpath;
print "n";



Add new prompt in Defined Templates section, "option 2."


$vmos = "winnetstandard";
print "Path to Save VM (ie. /vmfs/volumes/storage1/vm/";
$vmpath = <>;chomp $vmpath;
print "n";



Update subroutine "writevmx".


$file = $vmpath . $vmname . ".vmx";


Update subroutine "createdisk".

$cr = "vmkfstools -c " . $vmdisk . "g " . $vmpath . $vmname . ".vmdk
-a lsilogic";
system("$cr");



Update subroutine "registerVM".


$rg = "vmware-cmd -s register " .$vmpath . $vmname . ".vmx";
system("$rg");



Update subroutine "setper".


$pm = "chmod 755 " . $vmpath . $vmname . ".vmx";
system("$pm");


The script will now prompt you for VM destination when creating new
VMs. Please note that when entering the destination file path, you should
include the leading and trailing "/".
When the script in Code Listing 4.7 is executed on the ESX server, a
menu will be displayed (see Figure 4.14).

Figure 4.14 The Perl Script VM Creation Menu

Perl Script Components
Utilizing the script in Code Listing 4.7, you can do the following tasks:

Create a custom VM with parameters that you supply.
Create VMs from predefined templates.
View listing of VMs currently registered on the ESX server.
Exit the script.


This script was written to be easily customized by you, the reader.
Variables have been set up for key VM-related options enabling simple modifications.
Let's dissect this script to get a better understanding of VmPerl.
Code Listing 4.8 shows the key variables.

Code Listing 4.8
Scripted Creation of VM with Perl Key Variables


$vmname = virtual machine name, will be used for disk as well
$vmmem = amount of memory assigned to VM
$vmos = OS that VM is configured for
$vmdisk = size of VM disk


These variables in the program are either dynamic or static depending
upon which option in the script you choose.The first option presented on the
menu shown in Figure 4.14 is Create A Custom VM.This option will prompt
you for the variables listed in Code Listing 4.8, as shown in Figure 4.15.

Figure 4.15Perl Script Custom Creation of VM


If you select the second option, Create VM's from Defined Templates,
the values are set statically in that section. Code Listing 4.9 shows an example
where these values are set in the code.

Code Listing 4.9
 Perl Script Static Variables for Template VM Creation

if ($menu1opt == 1) {
$vmname = "2003std25m4gb";
$vmmem = "256";
$vmdisk = "4";
$vmos = "winnetstandard";


It's a simple task to add additional menu options for more templates.
Adding sections like those in Code Listing 4.9 will enable to you to define a
bigger selection of templates for your environment.

The third menu choice option in the script is View ESX's Registered
VM's.This section utilizes the VmPerl API to access the ESX server. For more
information on the VmPerl API, download the ESX server SDK.This section
of the code connects to the local ESX server with your current userid and
password on port 902. It then queries ESX Server for a listing of registered
VMs. Figure 4.16 shows the output generated by this option.

Figure 4.16 Perl Script Query of ESX Server for Registered VMs



VmPerl Commands
VmPerl by itself cannot create virtual machine files or register virtual
machines.To accomplish these tasks, we must use the tools available.The
sample VmPerl script utilizes the command "system" to access the following
VMware tools:

vmkfstools
vmware-cmd


Do those tools sound familiar? By now you've become quite adept at utilizing
these tools for the creation of virtual machines.The latter sections of
the code contain the subroutines that handle the virtual machine disk creation
createdisk, and VM registration registervm. It is in these subroutines that
we use the tools listed earlier.
Utilizing the example script, and with your working knowledge of the
VMware tools from previous sections, you should have a competent understanding
of how to create virtual machines from a VmPerl script.

Use the following table of contents to navigate to chapter excerpts, or click here to view Chapter 4 in its entirety.

Building a VM
  Home: Introduction
 Part 1:Creation of virtual machines utilizing command line-tools
 Part 2: Scripting creation of virtual machines in ESX shell
 Part 3:Scripting creation of virtual machines in Perl Scripts
 Part 4: Cloning virtual machines utilizing ESX Shell scripts
 Part 5: Cloning virtual machines utilizing VmPerl Scripts
